Description
Key Features
Effective Diameter Range: 3-5/16″ – 4-1/4″ (84mm-108mm)
100% Stainless Steel
Sold in quantity of 2
Four piece heavy duty industrial grade quad-lock design, inner protective liner prevents the damage of the hose
Maximum Torque Spec: 35 in lbs, Exceeds all SAE requirements
1/2″ band , 5/16″ (8mm) slotted hex screw

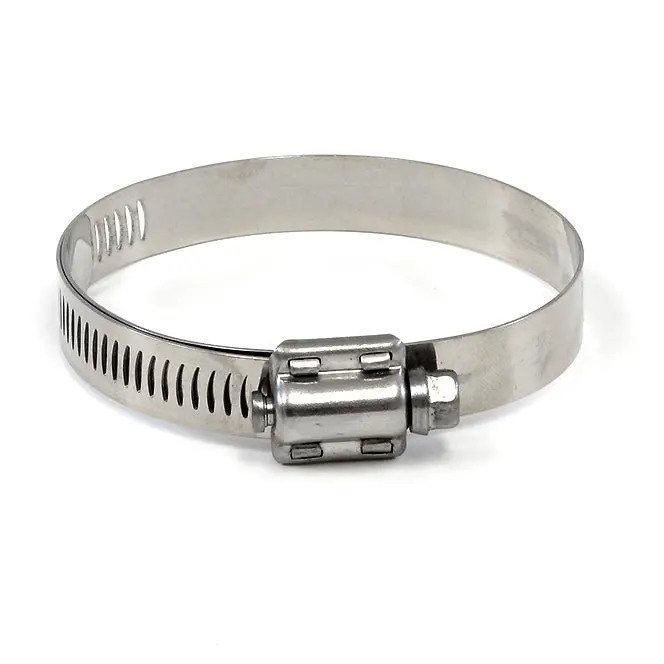

HPS 100% Stainless Steel Worm Gear Liner Hose Clamps SAE # 60 2pcs pack 3-5/16″ – 4-1/4″ (84mm-108mm) feature four piece heavy duty industrial grade quad-lock design allows more tightening torque compare to other aftermarket clamps. These HPS liner hose clamps features an inner protective sleeve which can prevent the damage of the silicone hose and delivers maximum protection and concentric seal to soft hoses. The HPS stainless steel worm gear liner hose clamps are ideal for aircraft, heavy-duty industrial applications as well as outdoor, fresh water and mildly corrosive applications. This HPS minature stainless steel clamp consist of stainless steel band, screw, saddle and housing. Technical Specification: SAE # 60. 100% Stainless Steel. 1/2 inch band. 5/16 inch (8mm) slotted hex screw. Four piece heavy duty industrial grade quad-lock design. Inner protective liner prevents the damage of the hose. Effective Diameter Range: 3-5/16″ – 4-1/4″ (84mm-108mm). Maximum Torque Spec: 35 in lbs. Exceeds all SAE requirements. REMARK: Sold in box of 2.
